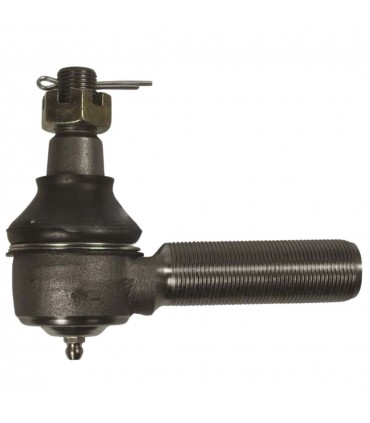

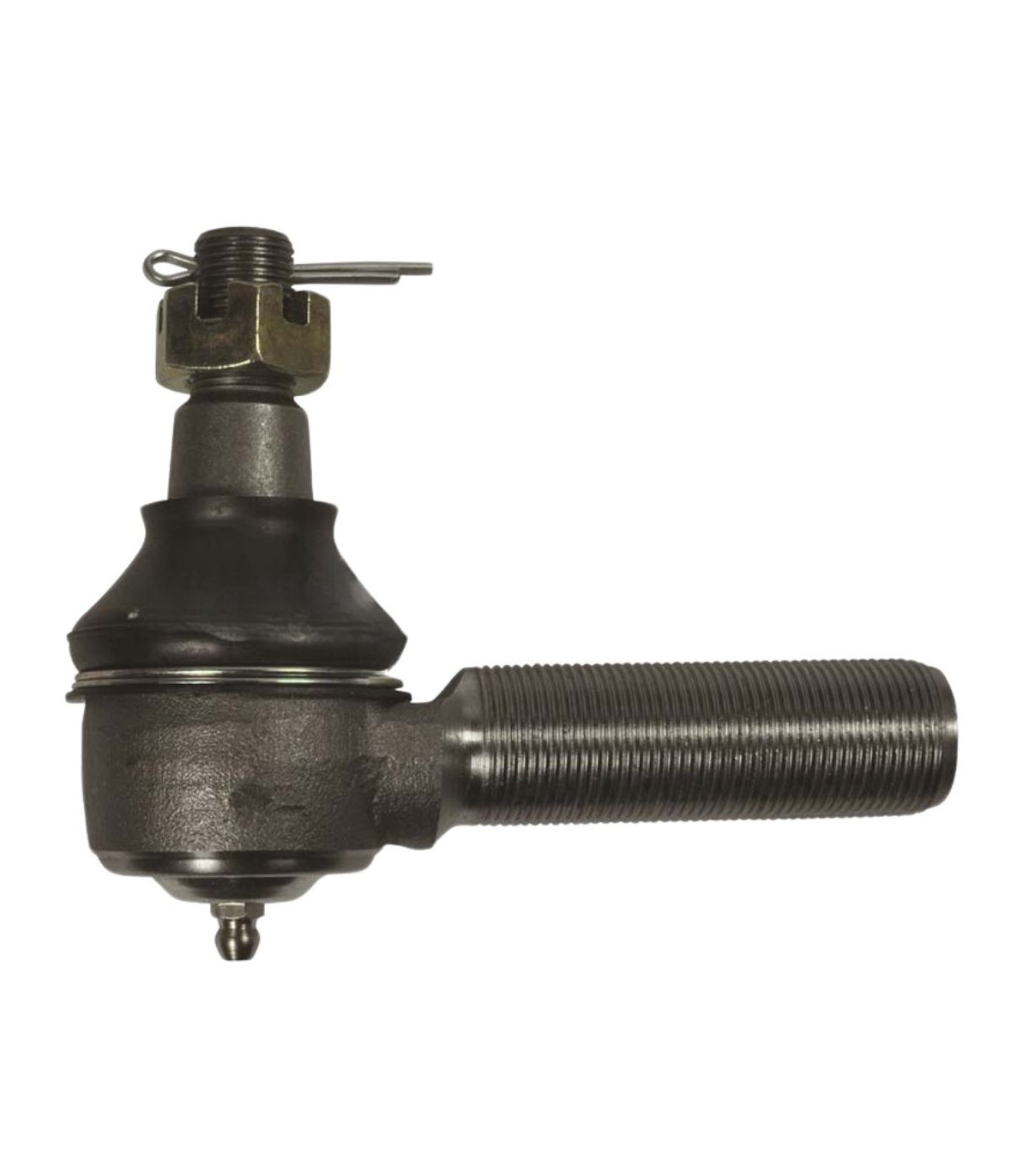

Rótula de dirección.
Características técnicas.
Producto alternativo.
Referencias OEM: 03215040, 043131R1, 100400-13H, 10040013H, 20260250, 2595121C1, 262887, 3215040, 3475538M91, 3523984M91, 43131R1, 51902, 6000188759, 688911, 720885, 8390620, 83930620, 87714422, 977617, CA088759, CA0887590, CA88759, CAR88759, CARR-088759, CARR088759, CARR88759, K260250, K262887, K262981, K956936, L39394, M100400-13H
Tipo A
Tipo de rosca Metric
Rosca - TA1 M24x1.5 LH
L1 (mm) 105
Cono (mm) 20 - 22
Rosca - TA2 M16x1.5 RH
L2 (mm) 70
H1 (mm) 97
H2 (mm) 78
TA3 n/a
L4 (mm) n/a
Ángulo n/a
Número de aguijero n/a
Ø agujero n/a
Peso: 0.82kg
Consultar Modelo de tractor y el tipo de motor en apartados COMPATIBLE CON y MOTORES.
TRACTOR CASE
2000
2130, 2140
33
433, 533, 633, 733, 833
40
440, 540 (APL1251), 640 (APL1251), 740 (APL1251), 840 (APL1251), 940 (APL1251)
43
743 (APL1351), 743XL (APL1351)
44
644, 744, 844, 844S (APL1351), 844XL (APL1351)
45
745S (APL3052), 745XL (APL3052), 845
56
856, 856XL (APL1351)
JX
55, 60, 65, 70, 75, 80, 85, 90, 95
MXM
120, 130, 135 (Brasil), 140, 150 (Brasil), 155, 165 (Brasil), 175, 180 (Brasil), 190
MXU
100, 110, 115, 125, 130, 135
Maxxum
5120, 5130, 5140, 5220, 5230, 5240, 5250
VJ
VJ70, VJ80
TRACTOR CLAAS/RENAULT
1000
1151-4
700
751-4 (>81029)
800
851-4
900
951-4
TRACTOR DEUTZ
05
2505 (4WD), 3005 (4WD), 4005 (4WD), 4505 (4WD), 5005 (4WD), 5505 (4WD), 7505 (4WD), 7505F (4WD), 7505U (4WD), 9005 (4WD), 9005F (4WD), 9005U (4WD)
06
10006 (4WD), 10006F (4WD), 10006U (4WD), 13006 (4WD), 16006 (4WD), 2506 (4WD), 3006 (4WD), 3006F (4WD), 4006 (4WD), 4006F/S (4WD), 4006U (4WD), 4506 (4WD), 4506F (4WD), 4506US (4WD), 5006 (4WD), 5006F (4WD), 5006U (4WD), 5206 (4WD), 5206F (4WD), 5206U (4WD), 5506 (4WD), 5506F (4WD), 5506U (4WD), 6006 (4WD), 6006F (4WD), 6006U (4WD), 6206 (4WD), 6206F (4WD), 6206U (4WD), 6806 (4WD), 6806F (4WD), 6806U (4WD), 7006 (4WD), 7006F (4WD), 7006U (4WD), 7206 (4WD), 7206A (4WD), 7206F (4WD), 7206U (4WD), 7506 (4WD), 7506F (4WD), 7506U (4WD), 8006 (4WD), 8006F (4WD), 8006U (4WD), 9006 (4WD), 9006A (4WD), 9006F (4WD), 9006U (4WD)
07
2807 (4WD), 3607 (4WD), 3607F (4WD), 4007 (4WD), 4007F (4WD), 4007U (4WD), 4507 (4WD), 4507A (4WD), 4507F (4WD), 4807 (4WD), 4807A (4WD), 4807F (4WD), 5207 (4WD), 5207A (4WD), 5207F (4WD), 6007 (4WD), 6007A (4WD), 6007F (4WD), 6207 (4WD), 6207A (4WD), 6207F (4WD), 6507 (4WD), 6507A (4WD), 6507F (4WD), 6807 (4WD), 6807A (4WD), 6907 (4WD), 7007 (4WD), 7007A (4WD), 7207 (4WD), 7207A (4WD), 7807 (4WD),7807A (4WD)
Agroprima
Agroprima 6.06 (4WD)
C
4507C (4WD), 4807C (4WD), 5207C (4WD), 6007C (4WD), 6207C (4WD), 6507C (4WD), 6807C (4WD), 6907C (4WD), 7007C (4WD), 7207C (4WD), 7807C (4WD)
D
40 (4WD), 50 (4WD)
DX
DX80 (4WD),DX80A (4WD)
DX4
DX4.10 (4WD), DX4.30 (4WD),DX4.50 (4WD), DX4.70 (4WD)
DX6
DX6.05 (4WD)
TRACTOR FENDT
Farmer 100
102, 103, 104, 105, 106LS, 106LSA, 106S, 106SA, 108LS, 108LSA, 108S, 108SA
Farmer 300 C
307 (2WD + 4WD), 308 (2WD + 4WD), 309 (2WD + 4WD)
Farmer 300 LS(A)
303 (2WD + 4WD), 304 (2WD + 4WD), 305 (2WD + 4WD), 306 (2WD + 4WD), 308 (2WD + 4WD), 309 (2WD + 4WD), 310 (2WD + 4WD), 311 (2WD + 4WD)
Farmer 300 TURBOMATIK
307 (2WD + 4WD), 308 (2WD + 4WD), 309 (2WD + 4WD), 310 (2WD + 4WD), 311 (2WD + 4WD)
Farmer Classic
5S
TRACTOR FIAT
1000
1180, 1180DT, 1280, 1280DT, 1380, 1380DT, 1580, 1580DT, 1880, 1880DT
66
60-66F, 60-66FDT
88
70-88DT, 80-88DT
90
100-90DT, 110-90DT (Série 2), 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT, 160-90, 160-90DT, 180-90, 180-90DT, 180-90DT (LA), 70-90DT, 80-90DT, 90-90DT
M
M100, M115, M135, M160
Winner
F120, F120DT, F130, F130DT, F140,F140DT
TRACTOR FORD
30
8630 (LA),8830 (LA)
40
8240, 8340
60
8160, 8260, 8360, 8560
8000
8430 (Latin America)
TRACTOR JOHN DEERE
20
3120
30
1830, 2030 (Europe), 2130 (Europe), 3030, 3130
40
1640 (Europe),1840 (Europe),2040 (>35000),2040 (Europe),2040S (Europe),2140 (Europe),2240 (>35000)
50
2450 CS (North America),2650 (Espana),2850 TSS (Europe)
