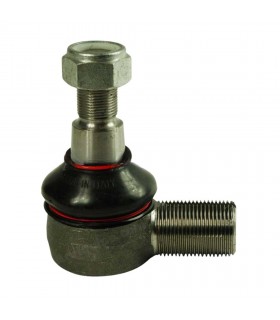

Rótula De Dirección Para Tractor Case, Fiat, Ford, New Holland
Rótula de dirección.
Características técnicas.
Producto alternativo.
Referencias OEM: 4954941, 4987961, 5109526, 87569214, S63167
Tipo de rosca Metric
Rosca - TA1 M20x1.0 RH
Lg (mm) 75
Cono (mm) 16 - 18
Rosca - TA2 M14x1.5 RH
L2 (mm) 54
H1 (mm) 84
H2 (mm) 70
Peso: 0.60 kg
Consultar Modelo de tractor y el tipo de motor en apartados COMPATIBLE CON y MOTORES.
Tractor CASE-IH
AVJ
AVJ55, AVJ60, AVJ70
JX
JX80, JX90, JX95
JXN
JX1070N, JX1075N, JX1095N
JXV
JX1060V, JX1070V, JX1075V, JX1095V
Quantum
105N, 105V, 65V, 75N, 75V, 85N, 85V, 95N, 95V
VJ
VJ60, VJ70, VJ80
Tractor FIAT
46
55-46, 55-46DT, 60-46, 60-46DT, 65-46, 65-46DT
56
55-56, 55-56DT, 65-56, 65-56DT, 70-56, 70-56DT, 70-56L
66
35-66, 45-66, 45-66DT, 45-66S, 45-66V, 50-66, 50-66DT, 50-66S, 55-66, 55-66DT LP, 55-66LP, 55-66S, 55-66V, 56-66S, 60-66, 60-66DT, 60-66F, 60-66LP, 60-66S, 65-66, 65-66S, 70-66, 70-66DT, 70-66F, 70-66LP, 70-66S, 70-66V, 80-66, 80-66DT, 80-66F, 80-66S
76
45-76V, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-76F, ,60-76FDT 70-76DT, 70-76F, 70-76LP, 70-76V, 80-76F
86
50-86SV, 50-86V, 55-86F, 55-86FDT, 55-86SV, 55-86V, 55-86VDT, 60-86F, 60-86FDT, 60-86SV, 60-86V, 60-86VDT, 62-86F, 70-86SV, 70-86SVDT, 70-86V, 70-86VDT, 72-86F, 72-86LP, 82-86DT, 82-86F, 82-86FDT, 82-86LP
88
55-88, 55-88DT, 60-88, 60-88DT, 65-88, 65-88DT, 70-88, 70-88DT, 80-88, 80-88DT
90
100-90, 100-90DT, 110-90, 110-90DT, 55-90, 55-90 DT, 60-90, 65-90, 65-90DT, 70-90, 70-90DT, 80-90, 80-90DT, ,85-90 85-90DT, 90-90, 90-90DT
93
60-93, 60-93DT, 65-93, 65-93DT, 72-93, 72-93DT, 82-93, 82-93DT, 88-93
94
60-94, 65-94, 65-94DT, 72-94, 72-94DT, 82-94, 82-94DT, 88-94
Someca
350DT, 466, 466DT, 500DT, 566, 570, 580, 650, 666, 670, 680, 750, 766, 780, 880, 980
Winner
F100, F100Dal, F100Fino, F110, F115, F120, F130, F140
Tractor FORD
30
3830 (2WD), 4030 (2WD), 4230 (2WD), 4430 (2WD)
35
3435 (2WD), 3935 (2WD), 4135 (2WD)
Tractor NEW HOLLAND
T4
T4.105 V, T4.65 V, T4.75 V/N/F, T4.85 V/N/F, T4.90F, T4.95 V
T4000N
T4030N, T4040N, T4050N, T4060N
T4000V
T4020V, T4030V, T4040V, T4050V, T4060V
TDD
TD75D, TD80D, TD80D Plus, TD90D, TD90D Plus, TD95D, TD95D Plus
TNN
TN65N, TN75N
TNNA
TN70NA, TN75NA, TN95NA
TNV
TN55V, TN65V, TN75V
TNVA
TN60VA, TN70VA, TN75VA, TN95VA
